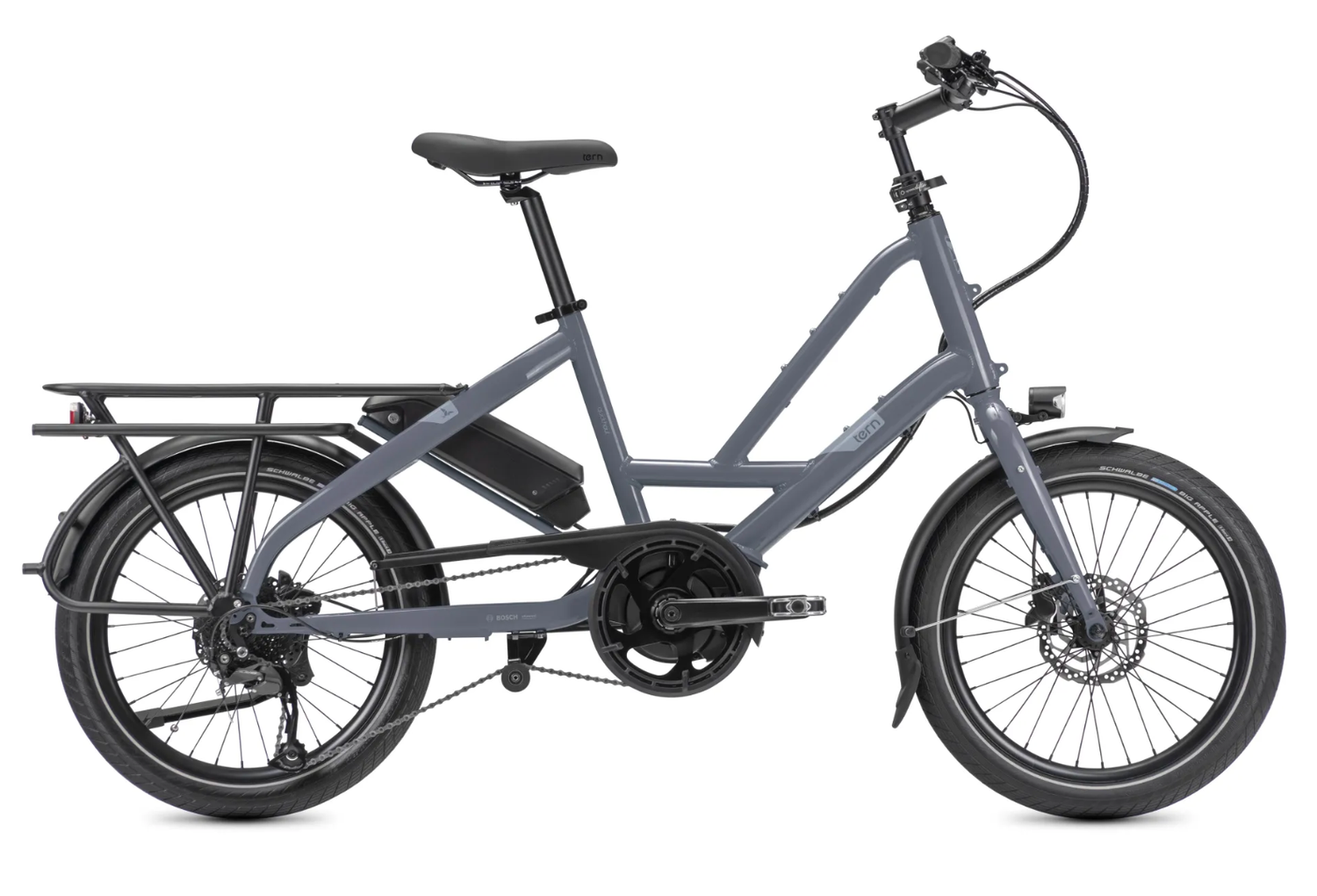

Tern Quick Haul P9 Performance OS Gloss Blue
$2,899.00
In stock: 1 available
Product Details
UPC: 810067160100
Brand: Tern
The Quick Haul features the unbeatably smooth Bosch motor system paired with stable yet responsive geometry. The result: a bike that’s as fun to ride as it is useful. The cockpit offers a comfy riding position similar to your favorite hybrid or trekking bike—perfect for turning everyday chores into mini adventures.
General Info
Speeds:
1 x 9
Weight:
22.9 kg (50.5 lb)
Gear Inches:
31" - 95" (2.45 - 7.57 m)
Frame Sizes:
One size
Distance: Seatpost to Handlebar:
60 - 64 cm (23.6 - 25.2 in)
Distance: Saddle to Pedal:
68 - 110 cm (26.8 - 43.3 in)
Suggested Rider Height:
160 - 195 cm (63 - 76.8 in)
Max Gross Vehicle Weight:
150 kg (330.7 lb)
Max Rider Weight:
120 kg (264.6 lb)
Frame
Frame:
Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg
Fork:
Cargo, steel, EFBE approved: 150 kg
Cockpit
Stem:
Speedlifter, 150 mm extension, 3D Forged stem, 31.8
Headset:
TH, cartridge bearings
Handlebar:
Low riser, 31.8, 6061-AL
Grips/Bar Tape:
Velo ergonomic, lock-on
Saddle:
Velo Comfort
Seatpost:
31.6 mm, 6061-AL, micro-adjust clamp
Seatpost Clamp:
Tern Collar
Brakes
Front Brake:
Shimano, hydraulic disc
Rear Brake:
Shimano, hydraulic disc
Brake Levers:
Shimano, hydraulic disc
Brake Cable & Housing:
Shimano, hydraulic disc
Wheels
Front Hub:
Shimano disc
Rear Hub:
Shimano disc
Spokes & Nipples:
Stainless steel
Rims:
Kinetix Comp, for disc
Tires:
Schwalbe Big Apple, 55-406, puncture protection, Reflex
Transmission
Shifter(s):
Shimano Alivio, 1 x 9 spd, trigger
Rear Derailleur:
Shimano Alivio Shadow
Crankset:
Tern custom, forged 6061-AL crankarm
Cassette/Freewheel:
Shimano 11-34T, 9 spd
Bottom Bracket:
Motor integrated
Chain:
KMC for eBike, 9 spd
Pedals:
Urban with non-slip surface
Shifter Cable & Housing:
SP
E-System
Motor:
Bosch Performance, 300% Assist, 65 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery:
Bosch PowerPack 400
Display:
Bosch Purion
Range:
400 Wh: 53 - 105 km (32.9 - 65.2 mi)
Charger:
Compact Charger, 100-240V, 2A
Bells & Whistles
Bell:
Aluminum
Chainguard:
SKS Chainblade
Kickstand:
Pletscher design, rear mount
Luggage Socket:
Combo Mount
Front Light:
Herrmans, 120 lumens
Rear Light:
Herrmans
Fenders:
Chromeplastic, stainless hardware
Rack(s):
Atlas Q Rack, UpperDeck Mount System, Vertical Parking, 50 kg capacity
