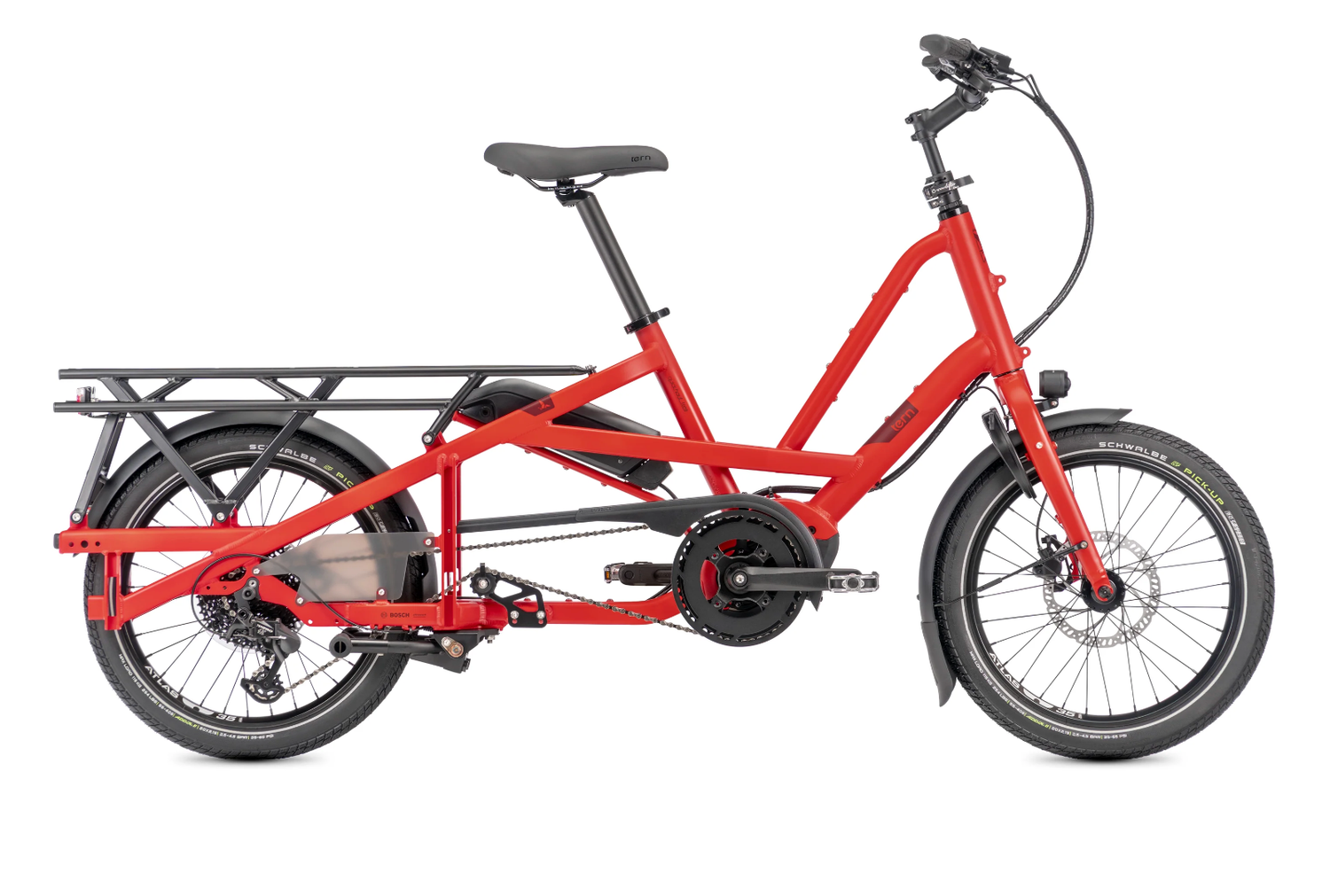

Tern Quick Haul Long D9 Satin Traffic Red
$3,799.00
In stock: 1 available
Product Details
Brand: Tern
Uncomplicated and incredibly versatile, Quick Haul Long is a compact cargo bike for families on the go. It’s similar in length to a regular bike for easy maneuvering past traffic queues, but built extra tough to safely carry 2 kids or your biggest Costco hauls. And best of all, it’s a funner, freer way to get around for you and your family without putting strain on the environment.
General Info
Speeds:
1 x 9
Weight:
29.3 kg (64.6 lb)
Gear Inches:
23" - 89" (1.87 - 7.13 m)
Frame Sizes:
One size
Distance: Seatpost to Handlebar:
60 - 64 cm (23.6 - 25.2 in)
Distance: Saddle to Pedal:
76 - 99 cm (29.9 - 39 in)
Suggested Rider Height:
155 - 185 cm (61 - 72.8 in)
Max Gross Vehicle Weight:
190 kg (418.9 lb)
Max Rider Weight:
120 kg (264.6 lb)
Frame
Frame:
Tern Quick Haul Long, Patented Design, 6061-AL, DIN 79010 certified: 190 kg (419 lb)
Fork:
Cargo, Aluminum alloy, DIN 79010 certified: 190 kg (419 lb)
Cockpit
Stem:
Speedlifter, adjustable, 3D forged stem, 31.8
Headset:
TH, cartridge bearings
Handlebar:
Low riser ergo, 31.8, 6061-AL
Grips/Bar Tape:
Velo ergonomic, lock-on
Saddle:
Velo Comfort
Seatpost:
34.9 mm, 6061-AL, micro-adjust clamp
Seatpost Clamp:
Tern Collar
Brakes
Front Brake:
Tektro hydraulic disc
Rear Brake:
Tektro hydraulic disc
Brake Levers:
Tektro hydraulic disc
Wheels
Front Hub:
Disc, aluminum
Rear Hub:
9 spd, disc, aluminum, Boost
Spokes & Nipples:
Stainless steel
Rims:
Tern Atlas H, cargo
Tires:
Schwalbe Pick Up, 60-406, Super Defense puncture protection, Reflex
Transmission
Shifter(s):
Tektro, 1 x 9 spd, trigger
Rear Derailleur:
Tektro custom for Tern, 1 x 9 spd
Crankset:
Tern custom, forged 6061-AL crankarm, anti-drop chainring
Cassette/Freewheel:
Tektro 11-42T, 9 spd
Bottom Bracket:
Motor integrated
Chain:
KMC for eBike, 9 spd
Pedals:
Urban with non-slip surface
Shifter Cable & Housing:
SP
E-System
Motor:
Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery:
Bosch PowerPack 500
Display:
Bosch Purion, 4 mode selectable, walk assist
Range:
500 Wh: 42-85 km (26-53 mi)
Charger:
220V, 4A (EU); 100-240V, 4A (US)
Bells & Whistles
Bell:
Aluminum
Chainguard:
SKS Chainblade
Kickstand:
Atlas Kickstand, for cargo
Luggage Socket:
Combo Mount
Front Light:
90 lux, StVZO approved
Rear Light:
Herrmans
Fenders:
SplashGuard, stainless hardware
Rack(s):
Atlas L, 90 kg (198 lb) capacity
Frame Lock:
ABUS or AXA, keyed-alike with Bosch battery
