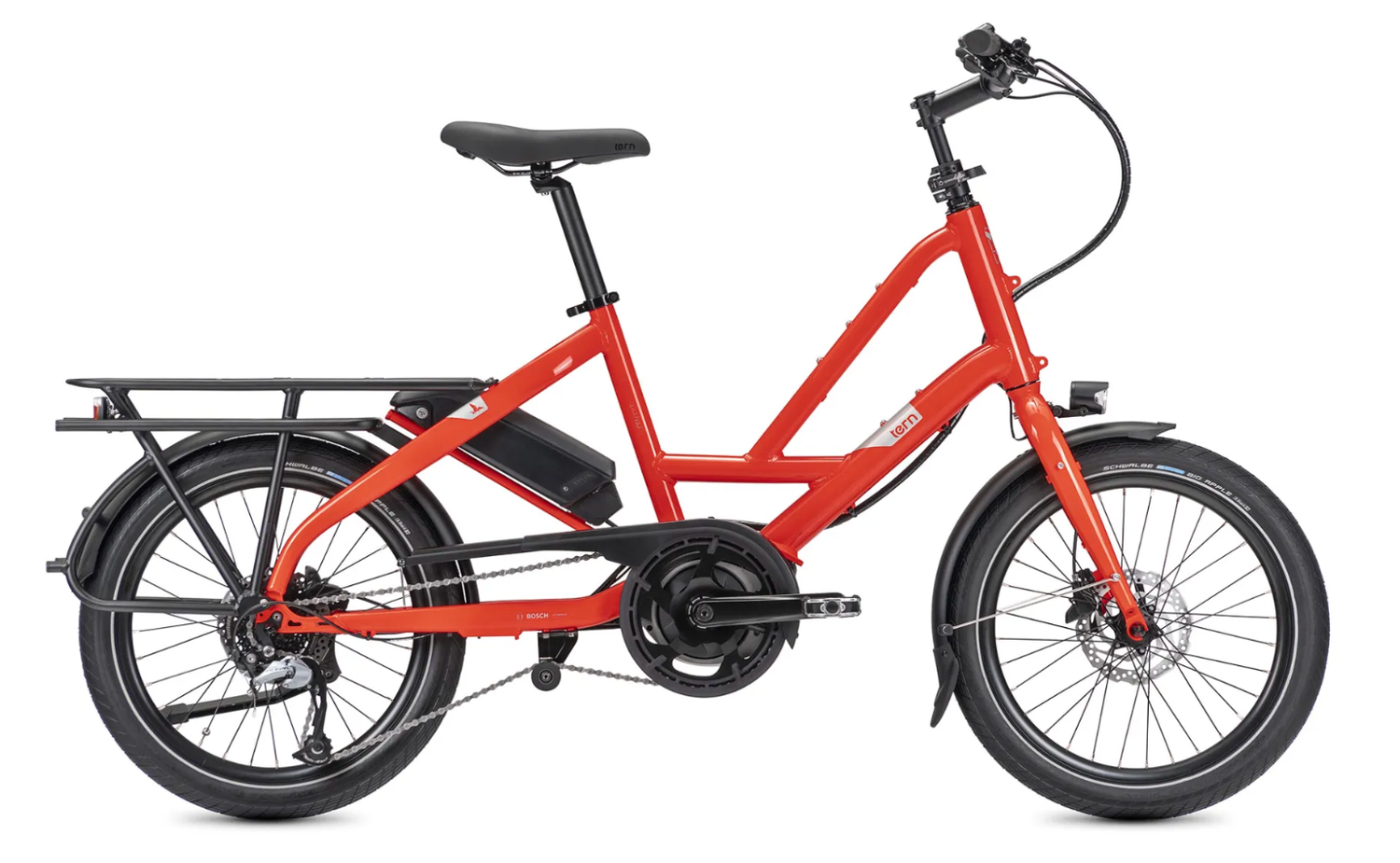

Tern Quick Haul D8 Tabasco

The Quick Haul is a built-to-last compact e-bike that’s ready to tackle your daily grind. Think of it as the multitool of e-bikes: small and unassuming enough to be your daily go-to, yet capable of handling big jobs with finesse. Introducing the Tern Quick Haul D8, your resilient daily partner that’s a compact e-bike yet tough enough for demanding tasks. With the Bosch Active Line Plus motor providing substantial torque and support for up to 20 mph, it’s paired with a 1×8-speed Shimano altus groupset for a seamless riding experience.

Technical Specs

• SPEEDS: 1 x 8
• WEIGHT: 22.8 kg (50.3 lb)
• GEAR INCHES: 31" - 95" (2.45 - 7.57 m)
• FOLDING TIME: 10 sec
• FRAME SIZES: One size
• DISTANCE: SEATPOST TO HANDLEBAR: 60 - 64 cm (23.6 - 25.2 in)
• DISTANCE: SADDLE TO PEDAL: 68 - 110 cm (26.8 - 43.3 in)
• SUGGESTED RIDER HEIGHT: 150 - 195 cm (59.1 - 76.8 in)
• MAX GROSS VEHICLE WEIGHT: 150 kg (330.7 lb)
• MAX RIDER WEIGHT: 120 kg (264.6 lb)
• FRAME: Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg
• FORK: Cargo, steel, EFBE approved: 150 kg
• STEM: Speedlifter, 150 mm extension, 3D Forged stem, 31.8
• HEADSET: TH, cartridge bearings
• HANDLEBAR: Low riser, 31.8, 6061-AL
• GRIPS/BAR TAPE: Velo ergonomic, lock-on
• SADDLE: Velo Comfort
• SEATPOST: 31.6 mm, 6061-AL, micro-adjust clamp
• SEATPOST CLAMP: Tern Collar
• FRONT BRAKE: Shimano, hydraulic disc
• REAR BRAKE: Shimano, hydraulic disc
• BRAKE LEVERS: Shimano, hydraulic disc
• BRAKE CABLE & HOUSING: Shimano, hydraulic disc
• FRONT HUB: Shimano disc
• REAR HUB: Shimano disc
• SPOKES AND NIPPLES: Stainless steel
• RIMS: Kinetix Comp, for disc
• TIRES: Schwalbe Big Apple, 55-406, puncture protection, Reflex
• SHIFTER(S): Shimano Altus, 1 x 8 spd, trigger
• REAR DERAILLEUR: Shimano Altus Shadow
• CRANKSET: Tern custom, forged 6061-AL crankarm
• CASSETTE/FREEWHEEL: Shimano 11-34T, 8 spd
• BOTTOM BRACKET: Motor integrated
• CHAIN: KMC for eBike, 8 spd
• PEDALS: Urban with non-slip surface
• SHIFTER CABLE & HOUSING: SP
• MOTOR: Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
• BATTERY: Bosch PowerPack 400
• DISPLAY: Bosch Purion
• RANGE: 400 Wh: 54 - 105 km (33.6 - 65.2 mi)
• CHARGER: Compact Charger, 100-240V, 2A
• BELL: Aluminum
• CHAINGUARD: SKS Chainblade
• KICKSTAND: Pletscher design, rear mount
• LUGGAGE SOCKET: Combo Mount
• FRONT LIGHT: Herrmans, 120 lumens
• REAR LIGHT: Herrmans
• FENDERS: Chromeplastic, stainless hardware
• RACK(S): Atlas Q Rack, UpperDeck Mount System, Vertical Parking, 50 kg capacity
