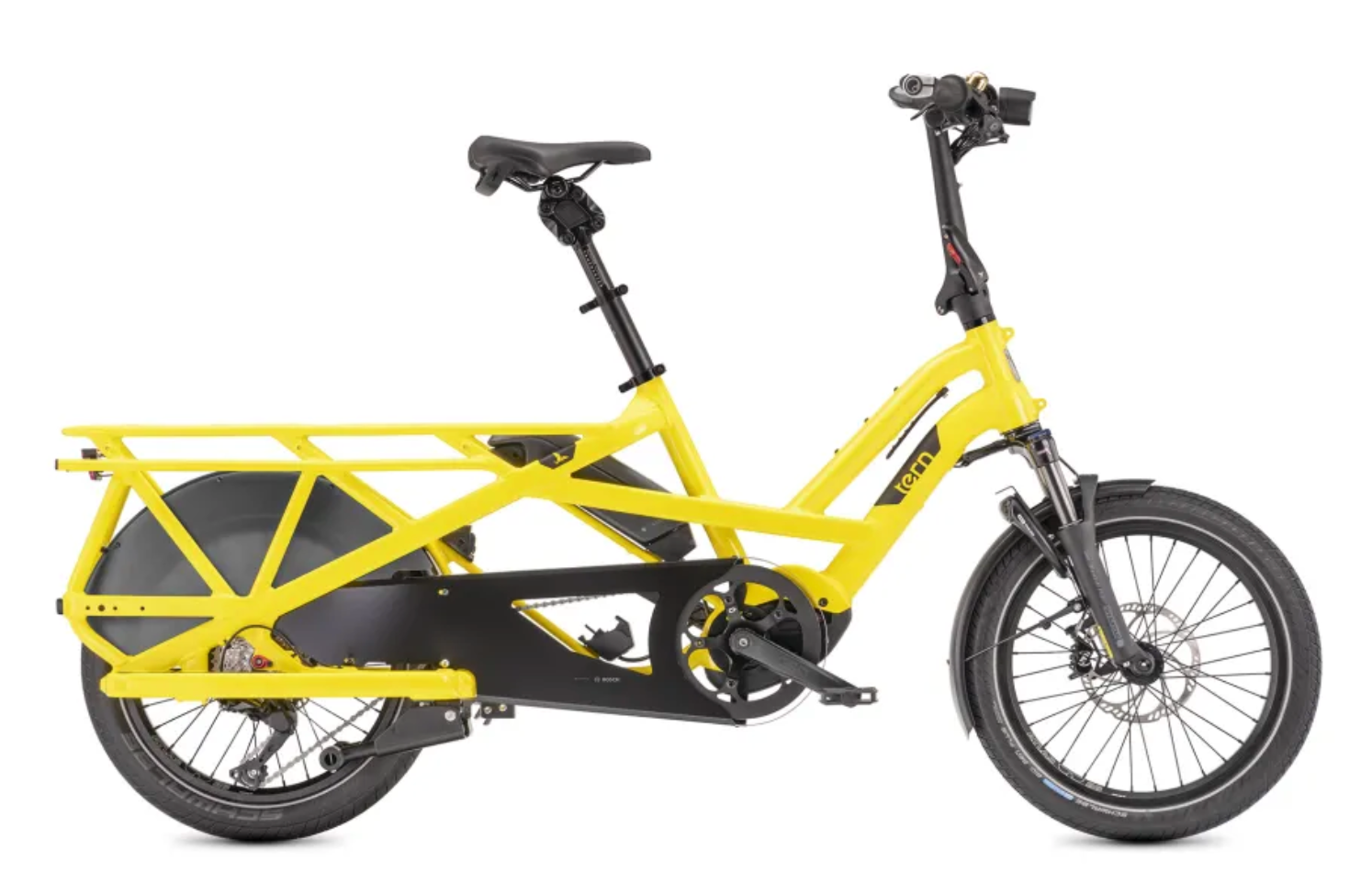

Tern GSD S10 LX School Bus Yellow

The GSD is made to fit your life, including all your stuff. Our ecosystem of accessories includes a wide range of cargo-carrying gear designed to keep your loads secure and stable for wobble-free hauling. You may not have thought of using a bike to pick up groceries, home improvement supplies, or plants for your garden—but now you will.

• GENERAL INFO
• WHEEL SIZE: 20" wheels
• SPEEDS: 1 x 10
• WEIGHT: 33.58 kg (74.03 lb)
• FOLDING SIZE: 176 x 40.5 x 87 cm (69.3" x 15.9" x 34.3")
• FOLDING TIME: 5 sec
• FRAME SIZES: 186 cm (Total Length)
• GEAR INCHES: 26" - 99" (2.08 - 7.91 m)
• DISTANCE: SEATPOST TO HANDLEBAR: Min: 490 mm (19.3") Max: 590 mm (22")
• DISTANCE: SADDLE TO PEDAL: Min: 690 mm (27.2") Max: 1050 mm (41.3")
• SUGGESTED RIDER HEIGHT: 150 - 195 cm (4'11" - 6'5")
• MAX GROSS VEHICLE WEIGHT: 200 kg (440 lb)
• MAX RIDER WEIGHT: 120 kg (264 lb)
• FRAME
• FRAME: Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg
• FORK: Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg
• COCKPIT
• HANDLEPOST: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
• STEM: Tern Andros, adjustable, forged construction, patented technology
• HEADSET: Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
• HANDLEBAR: Tern Sweep, 6061-AL, Tern Andros adapted
• GRIPS/BAR TAPE: Ergon
• SADDLE: Tern GSD by Velo, with rear handle
• SEATPOST: Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm
• SEATPOST CLAMP: Tern Collar, 6061-AL, 2pc
• BRAKES
• FRONT BRAKE: Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
• REAR BRAKE: Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
• BRAKE LEVERS: Magura MT5 e-stop, hydraulic, with brake sensor
• BRAKE CABLE & HOUSING: Magura, hydraulic
• WHEELS
• FRONT WHEEL: Tern Atlas, heavy duty cargo wheel
• REAR WHEEL: Tern Atlas, heavy duty cargo wheel
• FRONT HUB: Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing
• REAR HUB: Tern Atlas, Boost Thru-Axle, Syntace X-12 standard, Cargo-optimized design
• SPOKES AND NIPPLES: Stainless steel, 13G
• RIMS: Tern Atlas, ultra wide 36 mm, dual reinforced joint
• TIRES: F: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
• TRANSMISSION
• SHIFTER(S): Shimano Deore, 1 x 10 spd
• REAR DERAILLEUR: Shimano Deore Shadow+
• CRANKSET: Tern GSD custom, forged 6061-AL DH crankarm
• CASSETTE/FREEWHEEL: Shimano 11-36T, 10 spd
• BOTTOM BRACKET: Motor integrated
• CHAIN: 10 spd, DHT for eBike, GST corrosion resistant coating
• PEDALS: Urban with non-slip surface, sealed bearings
• SHIFTER CABLE & HOUSING: Jagwire LEX-SL, slick treatment, alloy ferrules
• E-SYSTEM
• MOTOR: Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
• BATTERY: Bosch Dual Battery system, 500 Wh/1000 Wh
• DISPLAY: Bosch Purion
• RANGE: 500 Wh: 52-105 km (32-65 mi); 1000 Wh: 102-206 km (63-128 mi)
• CHARGER: 220V, 4A (EU); 100-240V, 4A (US)
• BELLS & WHISTLES
• BELL: Pitch Plus, brass
• CHAINGUARD: Tern Custom, full chain cover
• KICKSTAND: Atlas Lockstand, w/ remote unlock, patented technology
• LUGGAGE SOCKET: Combo Mount
• FRONT LIGHT: Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
• REAR LIGHT: RearStop Brake Light, Always on brake light
• FENDERS: Integrated Wheel Guard, AL6061, w/ Side Skirt
• RACK(S): Frame integrated, heavy duty design
• ACCESSORY: ABUS, keyed-alike with Bosch battery
