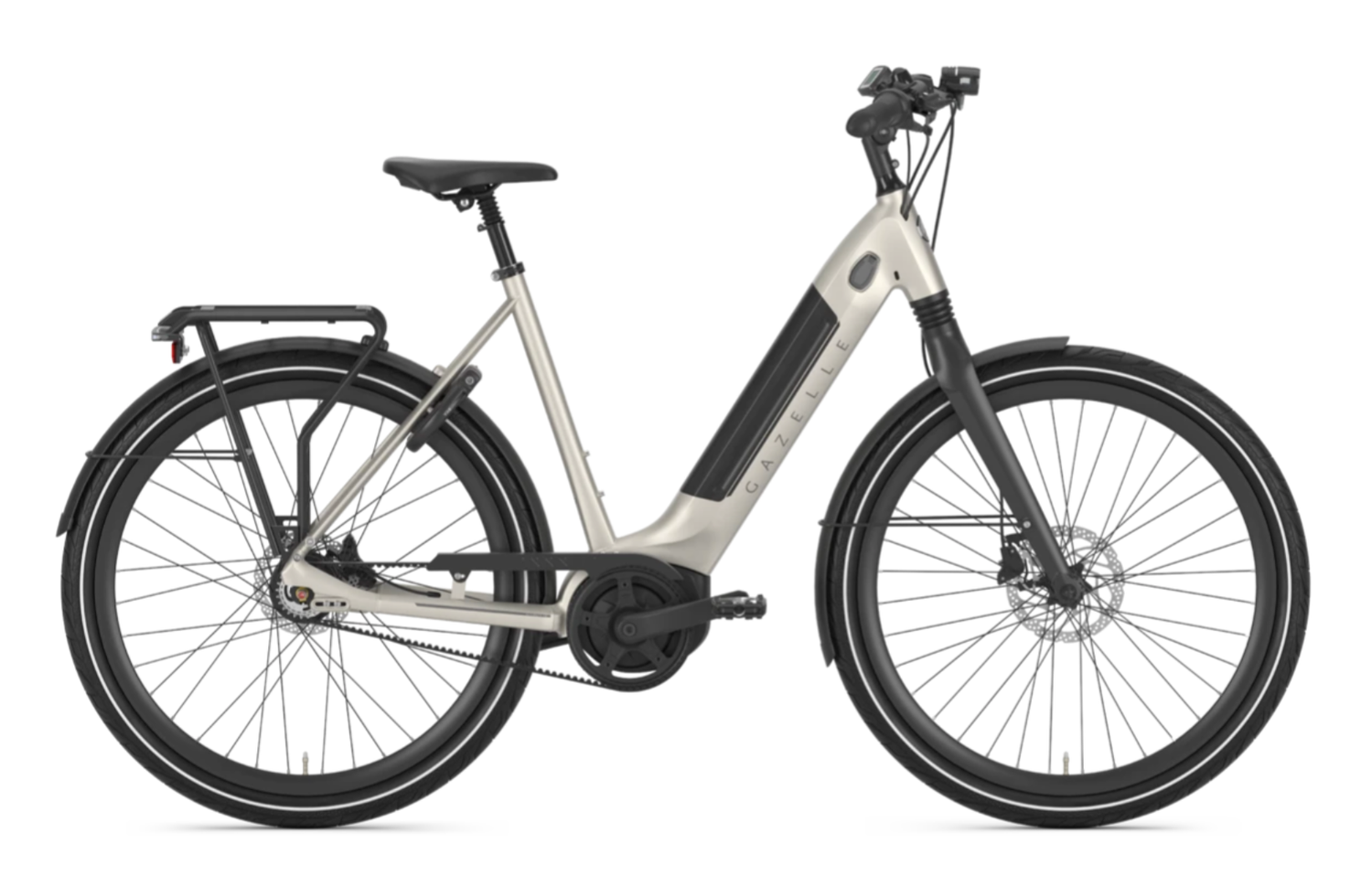

Gazelle Ultimate C8 57 Sienna Light

Interested in a comfortable ebike with sporty looks? With modern styling, a stiff and compliant frame, and low maintenance components, the Ultimate C8 is your choice! The Ultimate C8 combines a dynamic appearance with exceptional comfort. In an active riding position you will experience excellent road holding thanks to the bike’s low center of gravity. Low-maintenance components such as the Nexus gear hub and the durable belt drive guarantee ease of operation and flawless functioning — as well as carefree cycling pleasure!

Technical Specs

Frame shape- low-step

Size- 46, 53, 57

Name- Gazelle Ultimate

Wheelsize- 28

Frame description- Stable aluminum frame with 70,5° headset angle and 71,5° saddle tube angle for sporty cycling characteristics. Battery, motor and cables harmoniously integrated into the frame. High-quality finish with attention to detail.

Frame material- aluminum

Luxury level- ****

Weight in Lb.- 53.8

Tires- Schwalbe Energizer Plus

Fork material- aluminum

Fork suspension type- internal to headset

Rear carrier description- Gazelle commuter, aluminum

Handlebar description- Aluminum, slightly curved model

Colour- Beige, Blue

Saddle- Selle Royal Loire

Seatpost suspension- Yes

Chaincase description- Aluminum

Tire color- black

Rims- Ryde Dutch

Segment- Electric bicycles

Lock description- Ring lock with an option for a plug-in cable to attach your bike to a fixed object for extra protection against theft

Sitting position- Active

Travel Fork- 40 mm

Adjustable stem- Yes

Grip type-Gazelle Aero leather

Grips- Luxury leather handlebar grips for a sophisticated feel and extra comfort

Lock safety level- ART ** certified

Kickstand type- drop-down rear stand

Lock Type- AXA Defender

Front light type- Axa Blue Line 50

E-Bike

E-bike system- Bosch

Motor location- mid

Battery type- Li-ion

Motor assistance level- 20 mph

Battery position- integrated into frame

Battery replaceable- Yes

Amount of support levels- 4

Walk assist- Yes

Engine model- Bosch Active Line Plus 3.0 (50Nm)

Motor capacity- 50 Nm

Battery system- Bosch

Display Model- Bosch Purion LCD

Ebike sensors- rotation sensor, speed sensor, pedal force sensor

Display location- side display

Transmission & Brakes

Gear system description-8-speed Shimano Nexus

Gear type- hub

Gears- 8

Brake system short description- hydraulic brakes, 2 piston

Brake Front- disc brake with hydraulic control

Brake Rear- Disc brake with hydraulic control

Front chainwheel- 55
